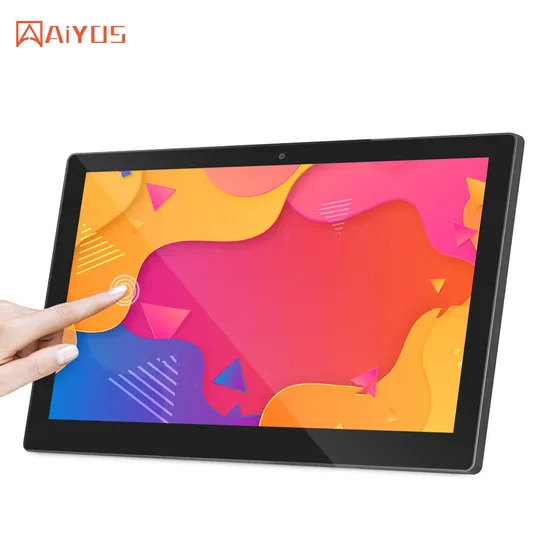

Tablet PC VGA Monitor 23.8" Infrared Capacitive Pcap Touchscreen Openframe Embedded Digital Signage Monitor

Basic Info

Model NO.	COT238-CPF03
Widescreen	Widescreen
Response Time	2ms
3D	Not 3D
Interface Type	USB, RS232, Serial, VGA, DVI, Mdmi, Dp
Regular Size	8~65 Inch
Touch Points	5/10 Points Touch
Brightness	300 Ints (Option)
Warranty	1~3 Year
Functions	IP6 Vandalproof Waterproof Outdoor Anti Glare
Installation	Wall/Openframe/Embedded/Brackets etc
Structure	IP66 Outdoor Industrial No Bezel Flat Surface
Operating System	Windows/Linux/Android/iMac/Raspberry Pi etc
LCD Panel	Brand New a+ Original LCD Panel LG Samsung Auo Boe
Certificates	FCC, Ce, RoHS, ISO9001, ISO14001, IP66 Waterproof
Transport Package	1~4set/Carton
Trademark	THINKTOUCH
Origin	China
HS Code	8528591090
Production Capacity	40000sets/Month

Product Description

7-98 inch Openframe,Embedded,Wall mounted,Desktop TouchScreen Monitor Display;
SAW,IR,Infrared,Resistive,Capacitive,PCAP,Touch Foil Touchscreen Touch Panel Touch Frame Monitor Display;Indoor,Outdoor,Industrial,Commerical,Custom made KIOSK Touchscreen LED Monitor Display;ELO,3M Compatible TFT LCD LED Panel TouchScreen Monitor Advertising Displayer Monitors;IP65 Vandalproof,Shockproof,IP66 Waterproof Anti Glare,Anti Sunlignt,Anti UV Signage Monitor;1,2,4,6,10,16 Mulit points Interactive Mulitmedia Touch Table Gaming Touchscreen Monitor;1280*1024,1920*1080 HD FHD LG Samsung AUO BOE Good Quality LCD Panel POS Monitor;350ints,500ints,800ints,1000ints,1200ints,1500ints,2000ints,2500ints High Brightness Touch Displayer;USB,RS232,VGA,DVI,HDMI,DP interface input output Information Kiosk TouchScreen Monitor ;Windows,Linux,Android,Imac,Raspberry pi OS Supported TAds ouchScreen Monitor Displayer;CE,FCC,ISO14001,ISO9001,RoHS Certifications China Alibaba Shenzhen Touch Solution Manufacture ;VESA 75mm and 100mm,Brackets Rear Mounting Education Smart Whiteboard TouchScreen Monitor;IP68 Touch Screen Surface Water-Proof Sealled,3MM Enhanced Glass With Vandal Proof Resistance;18 Month Warranty,Free Maintenance and Replacement,Donfgguan China 10 Years Factory Competitive Price & Fast Delivery;OEM & ODM & Customized Option: Structure/Interface/Function/Brightness/Computer Integrated Inside/Etc;High Contrast ,High Luminance,Wide Viewing Angle ,Sensitive Touch,Short Respond Time,High Resolution,16.7M Full Colors,Metal-cased; Openframe Structure,>95% Light Transparency,Free Drive,Plug and Play;Application:Interactive Multimedial Kiosk,Self Service Terminal,Information Kiosk,Queuing Kiosk,Ticket Kiosk,Ordering Kiosk,Advertising Signage Displayer,Vending Machine,Touch All in one Computer,Industrial Touch PC,Vending Machine,ATM,Bank Payment Terminal,Touch Table,Touch TV,Electronic Education Whiteboard,AI,Intelligence Robot Equipment,Touch TV,Video Wall, etc.

Touch Screen
Size	23.8 inch ( 16:9 Screen Ratio )
Type	Capacitive TouchScreen (5 or 10 Points Touch)
Resolution	4096*4096
Transmission	> 92%
Touch Life	50 millions
Response Time	5ms
Interface	USB / RS232 / IIC interface
LED Panel
LCD Brand	(A-UO) M238HAN01.0 (Optinal)
Resolution	1366(RGB)×768 , WXGA (Optinal)
Active Area	409.8(W)×230.4(H) mm
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Brightness	350 (Typ.) (Optinal)
Colors	16.7M , 50% (CIE1931)
Contrast	800 : 1 (Typ.) (Optinal)
Others
Power	Output : 12V/DC/4A ; Input : 100-240 VAC, 50-60 Hz
MTBF	30000 hr at 25°C
Temp.	Operating : -30~85°C ; Storage : -30~85°C
RH	Operating : 20%~80% ; Storage : 10%~90%

23.8 inch Capacitive PCAP TouchScreen Monitor Display DrawingWarranty & Components1 Year Free Warranty for Monitor and all components.USB Cable *1 Pcs,VGA Cable *1 Pcs,Power Cord with Switching Adapter *1 Pcs,Bracket*2 PcsRS232 Cable & DVI Cable Sold SeparatelyTouchScreen/ LCD Monitor / Touch Compupter Applications :1. Business Institutions: Department Store, Super Market, Exclusive Store, Hotel, Restaurant, Medicine Store`2. Financial Institutions: Bank, Stock Market, Insurance Company, etc.3. Public Services: Hospital, School, Telecom Hall, Post Office, etc.4. Public Places: Subway, Airport, Bookstore, Park, Exhibition Center, Stadium, Museum, Ticket Agency, etc.5. Real Eatates: Apartment, Villa, Business Building, HR Market, Lottery Center,etc.6. Entertainment Places: Cinema, Gym, Holiday Inn, Nightclub, Massage Parlor, Internet Cafe, Golf, etc.Packing & Delivery1/2 sets/carton,EPE packaging inside ; Net Weight : 8 kg/pcsCompany Introduction--CJTOUCHDongguan CJTOUCH Electronic are 10 Years of a Professional OEM Manufacturer and Supplier ;Main Product : Touch Screen, Touch Foil, LCD/LED Monitor, Touch PC, Kiosk and Accessories etc.Our Main Factory is located near Shenzhen,China.
